ORDERING DATA
ORDERING DATA
(current)
NTG
TGCL
TYPE
Pump Type:
TGCL 65-125
TGCL 100-200
TGCL 125-160
TGCL 150-200
TGCL 150-250
Flange Size:
Flange Drilling:
Flat Face
Raised Face
Casing Material:
EN-GJL-250
EN-GJS-400
Impeller Material:
EN-GJL-250
EN-GJS-400
Cable Gland:
M25x1,5 (standard)
M20x1,5
3/4" GAS
EXECUTION

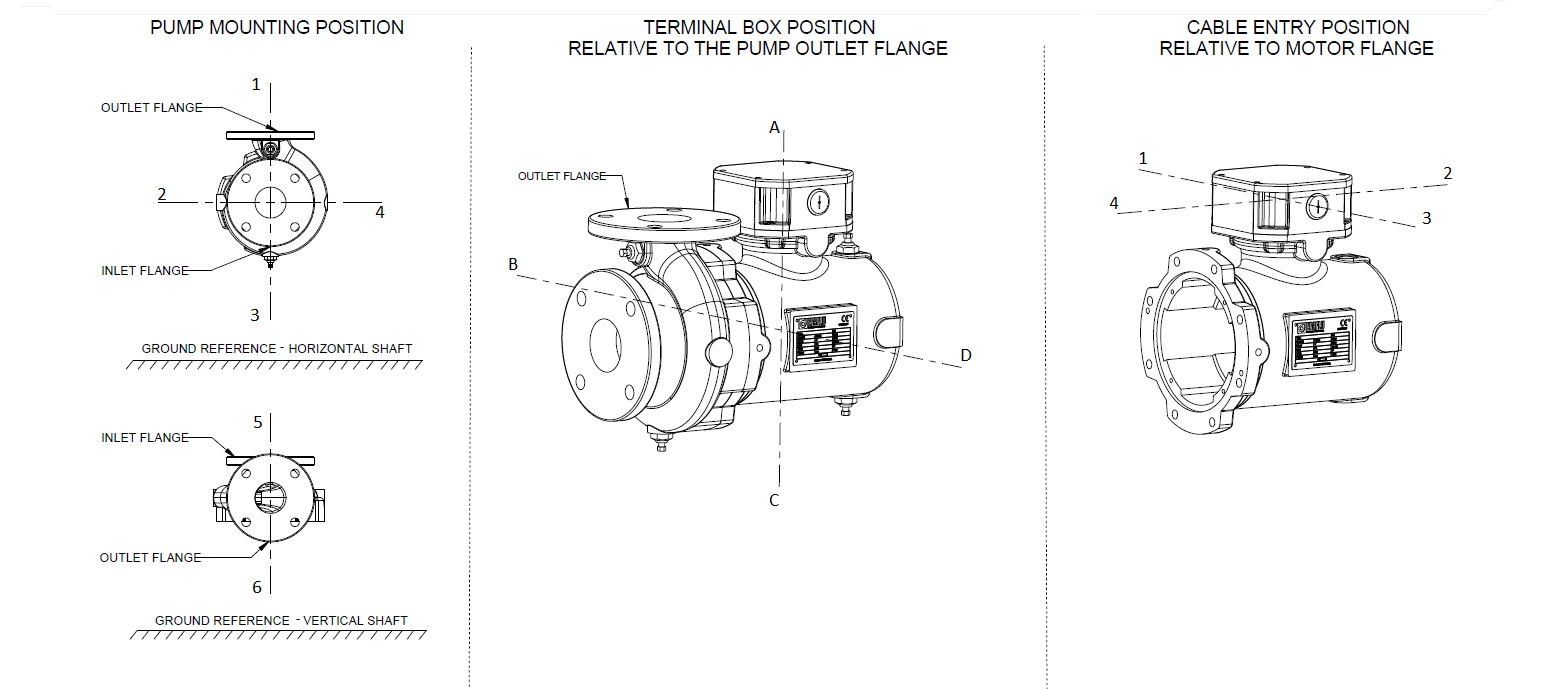

Pump mounting position:
1
2
3
4
5
6
Terminal box position:
A
B
C
D
Cable entry position:
1
2
3
4
Posição de Montagem:
Hilight drains:
ELECTRICAL CHARACTERISTICS
Supply Voltage (V):
Supply Frequency (Hz):
Degree of Protection (IP):
WORKING CONSTRAINTS
Min. Ambient Temperature (ºC):
Max. Ambient Temperature (ºC):
Min. Oil Temperature (ºC):
Max. Oil Temperature (ºC):
PAINTING
Painting:
C5-M
C5-I
C4
Colour, RAL:
OTHERS/SPECIAL:
Print
